04390-41
Magnet Door Holder Floor Mounted 24V DC 45mA
Magnet Door Holder Floor Mounted 24V DC 45mA
Product family
Peripherals & Accessories
Typical application
Ordered for defined panel replacements, system expansions, controller upgrades, and like-for-like service work where the system architecture is already known.
Online price
£54.00
Availability
Special order
Supplied against current supplier confirmation.
Estimated delivery
Supplied to project requirement
Orders placed after 1pm are processed on the next working day.
Updated
Awaiting first sync
Product details

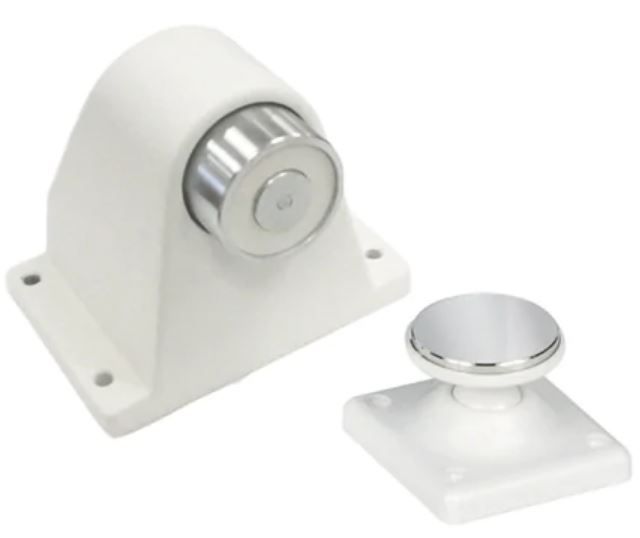

The close fire doors in an emergency and prevent the spread of fire and smoke. Fitted with an integral manual release button, allowing the door to be closed without operating the fire alarm. Supplied with a door mounting keeper plate. Each door retainer is fitted with a spring loaded release pin mounted centrally within the electromagnet. On power off, the release pin then pushes the door away from the electromagnet. This overcomes any residual magnetism ensuring correct operation. The D.C. unit is fitted with a suppression diode and protection against reverse polarity such that it may be operated from a reverse polarity monitored circuit. The low profile, flame retardant ABS housing results in an attractive and robust design and contains a push button for quick, easy release of the door. Features & Benefits: Low profile design 200N holding force Easy cable entry & exit A.C. or D.C. options Push button release/test Floor mounting bracket available Anti-residual magnetism feature D.C. version polorised and suppressed Certifications: EN1155:1997 (CPD Approved)
