CR-6EA
six way changeover relay output with built-in loop isolation
six way changeover relay output with built-in loop isolation. Complete with rotary address switch and plug-in terminal blocks. Requires M200-SMB-MM for mounting
Product family
Addressable Interface modules
Typical application
Supports plant interfacing, loop expansion, additional controller functionality, monitored inputs, and controlled outputs on known systems.
Online price
£737.00
Availability
Special order
Supplied against current supplier confirmation.
Estimated delivery
Supplied to project requirement
Orders placed after 1pm are processed on the next working day.
Updated
Awaiting first sync
Product details

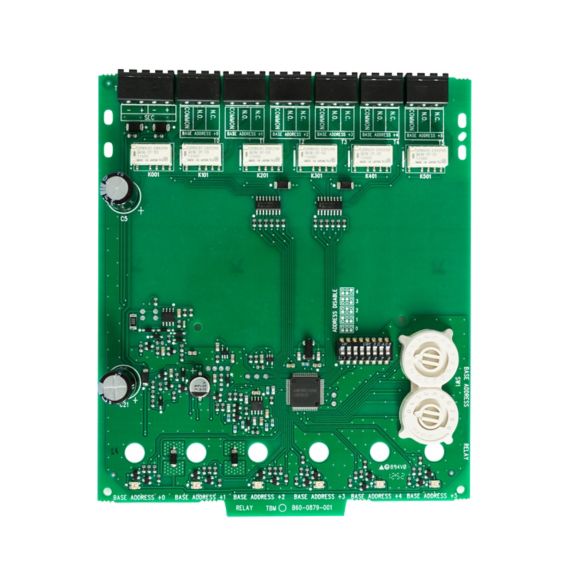

The Six Relay Control module consists of six Form-C relays. A single isolated set of dry relay contacts is provided for each module address which is capable of being wired for either a normally open or normally closed operation. The module allows the control panel to switch these contacts on command. No supervision is provided for the controlled circuit. The multi-module provides short circuit isolators to prevent shorts on the fire detection and alarm system loop from disabling more than one device on the intelligent loop. Jumpers have been replaced by dip switches to disable addresses and set Class A or Class B operation. Relay multi-modules can disable up to four addresses when operating in CLIP protocol. Advanced Protocol models only use 1 address per multi-module. Features & Benefits: Removable 12 to 18 AWG plug-in terminal blocks Individual LED indicators Unused addresses may be disabled Rotary address switches Class A or B operation Mount up to two modules in BB-2 enclosure (optional) Mount up to six modules in BB-6 enclosure with CH-6 chassis (optional) Mounting hardware included Certifications: UL and/or ULC Listed S7305 FM CSFM
